1.简介:

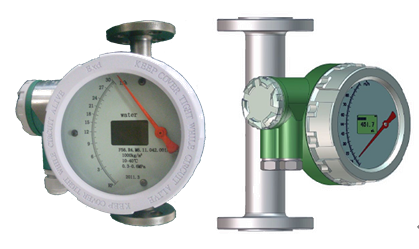

HFVAMT金属转子流量计坚固耐用,所有金属流量计的精度为0f 1%。HFVAMT由不锈钢组成,用于测量各种气体和液体。HFVAMT可以为腐蚀性液体和气体应用配置各种衬里。流量指示通过磁耦合方式提供,磁耦合方式是将封装在浮子中的磁铁与位于指示器后部的可旋转磁铁耦合,从而转动安装在仪表上的百分表指示器。可选配件包括4-20毫安输出与HART微处理器发射机,可配置或不配置报警和脉冲输出为tantalization。也可提供各种机械计数器。
2.技术特点:
♦多功能建筑,所有气体,液体
♦响应时间快,分辨率高,5到50毫秒
♦宽的温度范围从-40到+400°C
♦压力高达420巴
♦管道连接类有法兰、螺纹、三卡等。
♦电子产品无论是本质安全EEx ia II CT5,或Ex proof EEx d II CT6
♦可与特殊材料,如哈氏合金B和C,钛,铜,铝等。
♦PTFE和其他衬垫可供选择
♦NIST校准’
3.参数规范:
♦规格:15 ~ 250mm
♦测量范围:
♦水(20℃)10~300000L/h
♦空气(20℃,0.1013MPa) 0.7 ~ 3.000 m3/h
♦ 温度:机械计数器-80至+400℃
电子发射机-40至+250℃
♦压力:dn15 ~ DN50 4.0 mpa
dn65 ~ DN250 1.6 mpa
♦过程连接:ansi、din、JIS法兰
螺纹和卫生
♦turndown ratio: 10:1
♦精度:机械计数器1.5% FS
电子发射机1.0% FS
♦粘度:dn15 < 30 mPa.s,
dn25 mPa.s < 250
dn50 - 250 < 300 mPa.s
♦危险批准:ex ia II CT5
ex d II CT6
♦防护等级:IP65/NEMA 4X
♦环境温度:机械计数器-40至120℃
电子变送器-40 ~ 60℃
♦电缆接口:m20 × 1.5
1/2“G
1/2 " NPT
3/4“G
3/4 " NPT
4.选型规格表:
HFVAMT- | **- | **- | **- | **- | **- | **- | **- | **- | **- | ** | ** | ** | Description |
Diameter (for float contact factory) | **** | Size | |||||||||||
Bottom enter, Top exit | FA |
Meter Structure |
|||||||||||
Bottom enter, Top exit horizontal | FBT | ||||||||||||
Bottom enter horizontal, Top exit horizontal | FCZ | ||||||||||||
Right enter, Left exit | FDR | ||||||||||||
Left enter, Right exit | FD | ||||||||||||
304SS | 304 | Material | |||||||||||
316 SS | 316 | ||||||||||||
316L SS | 316L | ||||||||||||
304SS + PTFE liner - up to 100 deg C | PTFE | ||||||||||||
Titanium | TI | ||||||||||||
Hast C | HC | ||||||||||||
Hast B | HB | ||||||||||||
Liquid | L | Fluid | |||||||||||
Gas | G | ||||||||||||
*** | ** | Float No. | |||||||||||
Local indicator, circle house | M1 | Indicator | |||||||||||
Intelligent indicator, circle house (Exid), 24 VDC and 4-20mA, up to 250 deg C | M2 | ||||||||||||
-80~120 deg C | N |
Operating Temperature |
|||||||||||
120-150 deg C | 1 | ||||||||||||
150-200 deg C | 2 | ||||||||||||
200-250 deg C | 3 | ||||||||||||
250-300 deg C | 4 | ||||||||||||
300-400 deg C | 5 | ||||||||||||
Standard | NN |
Operating Pressure |
|||||||||||
High pressure, up to ** Mpa | ** | ||||||||||||
None | 0 | Alarm point | |||||||||||
Upper Alarm | U | ||||||||||||
Down Alarm | D | ||||||||||||
Upper and Down Alarm | UD | ||||||||||||
None | 0 | Jacket | |||||||||||
Hot jacket | 1 | ||||||||||||
?? | 2 | ||||||||||||
ANSI 150# flange | SS | Connection | |||||||||||
ANSI 300# flange | S3 | ||||||||||||
PN 1.0 flange | 1 | ||||||||||||
Other connection | ** | ||||||||||||
None | N | Options | |||||||||||
With filter | FL |
